Installation Procedure (for standing seam roofs)

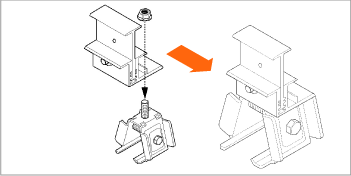

1.Attach the SmartRack® clamp to the support bracket.

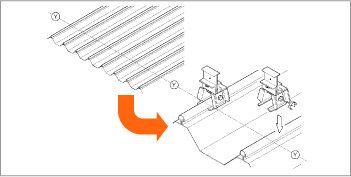

1.Locate and mark where your first row of modules will be installed.

2.Attach the first row of SmartRack® clamp and support bracket sets from Step 1 onto the standing seam roof.

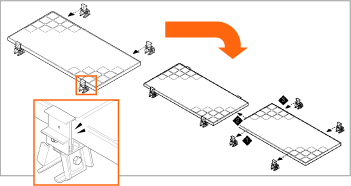

1.Attach PV modules onto the clamps installed in Step 2.

2.Affix the second row of SmartRack® clamps onto the module.

3.Repeat the process for the rest of the modules in the first row.

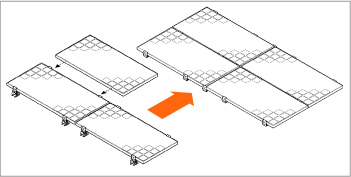

1.Repeat the process for all the modules until the array is complete.
